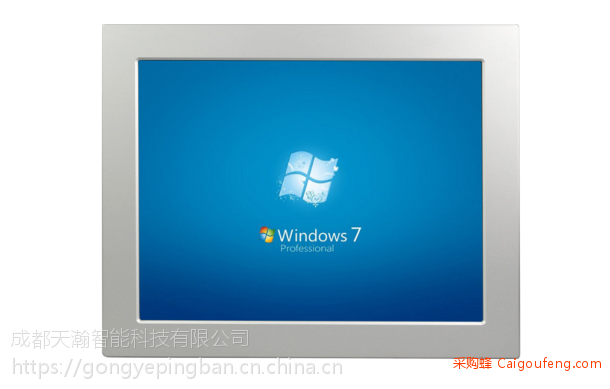

10.4寸驾考用一体机 工业平板电脑 宽压输入 高亮屏科目一/科目二天瀚智能
产品规格 | PT-104-M19 | products specifications | ||||||
| 系统参数 | 处理器 | Intel赛扬1037u 1.8GHZ低功耗处理器 | system parameters | processor | Intel Celeron 1037u 1.8GHZ low consumption processor | |||
| 芯片组 | lntel NM70 | chipset | lntel NM70 | |||||
| 内存 | 2GB/DDR3 内存 | memory | 2GB/DDR3 | |||||
| 磁盘 | SATA 2.5＂笔记本硬盘，可选固态盘 | disk | SATA 2.5” hard disk ,solid-state disc optional | |||||
| 显示 | shared memory-1024MB support VGA ,DVI and 24-bit dual chanellvds ,224MB共享显存，支持双屏显示 | display | shared memory-1024MB support VGA ,DVI and 24-bit dual chanellvds, shared memory-224MB, support dual display | |||||

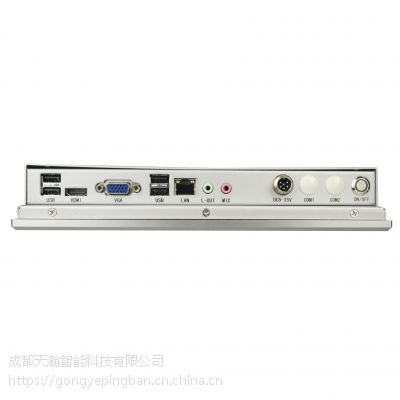

| I/O接口 | 网口 | 1个Realtekl 100/1000Mbps Rj45端口 | I/O | LAN port | 1* Realtekl 100/1000Mbps Rj45 ports | |||
| 音频 | 板载 HDA ALC662音频控制器，LINE-out和 MIC-in端口 | audio | onboard HDA ALC662 audio Controller,LINE-out and MIC-in ports | |||||
| USB | 6个USB2.0端口 | USB | 6* USB 2.0 ports | |||||
| 串口 | 2个RS232/RS485 | Serial ports | 2* RS282/RS485 | |||||
| 看门狗 | 0~255秒可编程设置 | watchdog | 0~255s programmable setting | |||||
| 液晶屏 | 显示屏类型 | 10.4＂ SVGA TFT LCD | LED | type | 10.4＂ SVGA TFT LCD | |||
| 分辨率 | 800×600 | Maximum resolution | 800*600 | |||||
| 色彩 | 16M | Maximum color | 16M | |||||
| 显示面积 | 304x 228mm | Display Area | 304x 228mm | |||||
| 反应时间 | 16ms | reaction time | 16ms | |||||
| 背光 | LED | backlight | LED | |||||
| 背光MTBF | 50,000小时 | backlight MTBF | 50,000 hours | |||||
| 亮度 | 350cd/m2 | Brightness | 350cd/m2 | |||||
| 对比度 | 500:1 | contrast | 500:1 | |||||
| 像素距离 | 0.297x 0.297 | pixel distance | 0.297x 0.297 | |||||
| 视角 | （H）130/（V）120 | Maximum view | （H）130/（V）120 | |||||
| 触摸屏 | 类型 | 4线电阻触摸屏 | Touch screen | type | 4 - wire resistive analog touch screen | |||
| 分辨率 | 4096 x 4096 | resolution | 4096 x 4096 | |||||
| 响应时间 | <5ms<> | Response time | <5ms<> | |||||
| 表面硬度 | 3H | Surface hardness | 3H | |||||
| 点击寿命 | 250克力度，3500万次 | click life | intensty 250g，35million times | |||||
| 笔划寿命 | 250力度，500万次 | touch pen life | intensty 250g，5million times | |||||
| 透光率 | 81%以上 | light transmittance | over 81% | |||||
| 恒温恒湿测试 | 85°C / 90%RH / 1000 hrs | Constant temperature and humidity test | 85°C / 90%RH / 1000 hrs | |||||
| 高温测试 | 85°C /1000 hrs | High temperature test | 85°C /1000 hrs | |||||
| 机构参数 | 前面板级 | 铝镁合金材质，硬质阳极氧化喷砂处理，前面板达到IP65防护等级 | Mechanism parameter | front panel | Aluminum magnesium alloy material, hard anodic oxidation process,front panel NEMA level IP65 | |||
| 安装方式 | 面板嵌入式安装方式和VESA壁挂式兼容 | installation modes | embedded and VESA mount Compatible | |||||
| 面板颜色 | 银灰色/黑色 | color | silver gray /black | |||||
| 电源输入 | DC12V直流电源 | power | DC 12V | |||||
| 总体尺寸 | 252x198x42.4mm(宽x高x深) | Overall dimensions | 286x190x48mm（WxHxD） | |||||
| 箱体尺寸 | Cabinet dimensions | |||||||
| 开孔尺寸 | 250x195mm(宽x高) | Hole dimensions | 285x200mm（WxH） | |||||
| 环境参数 | 工作温度 | -20~60?C | enviromental parameter | working temperature | -20~60?C | |||
| 存储温度 | -40~80?C | Storage temperature | -40~80?C | |||||
| 相对湿度 | 10~95%@40?C（无凝结） | relative humidity | 10~95%@40?C(No condensation) | |||||
| 振动 | 50~500Hz，1.5G，0.15mm峰值 | vibration | 50~500Hz，1.5G，0.15mm peak value | |||||
| 冲击 | 10G(11ms) | shock | 10G(11ms) | |||||
| 操作系统 | ***支持Windows 2000 pro/Windows XP pro/Windows7 嵌入式Windows XP/Linux | operating system | full support for Windows 2000 pro/Windows XP pro/Windows7 embedded Windows XP /Linux | |||||
